Floating Vanity Bracket — For Stone Sinks

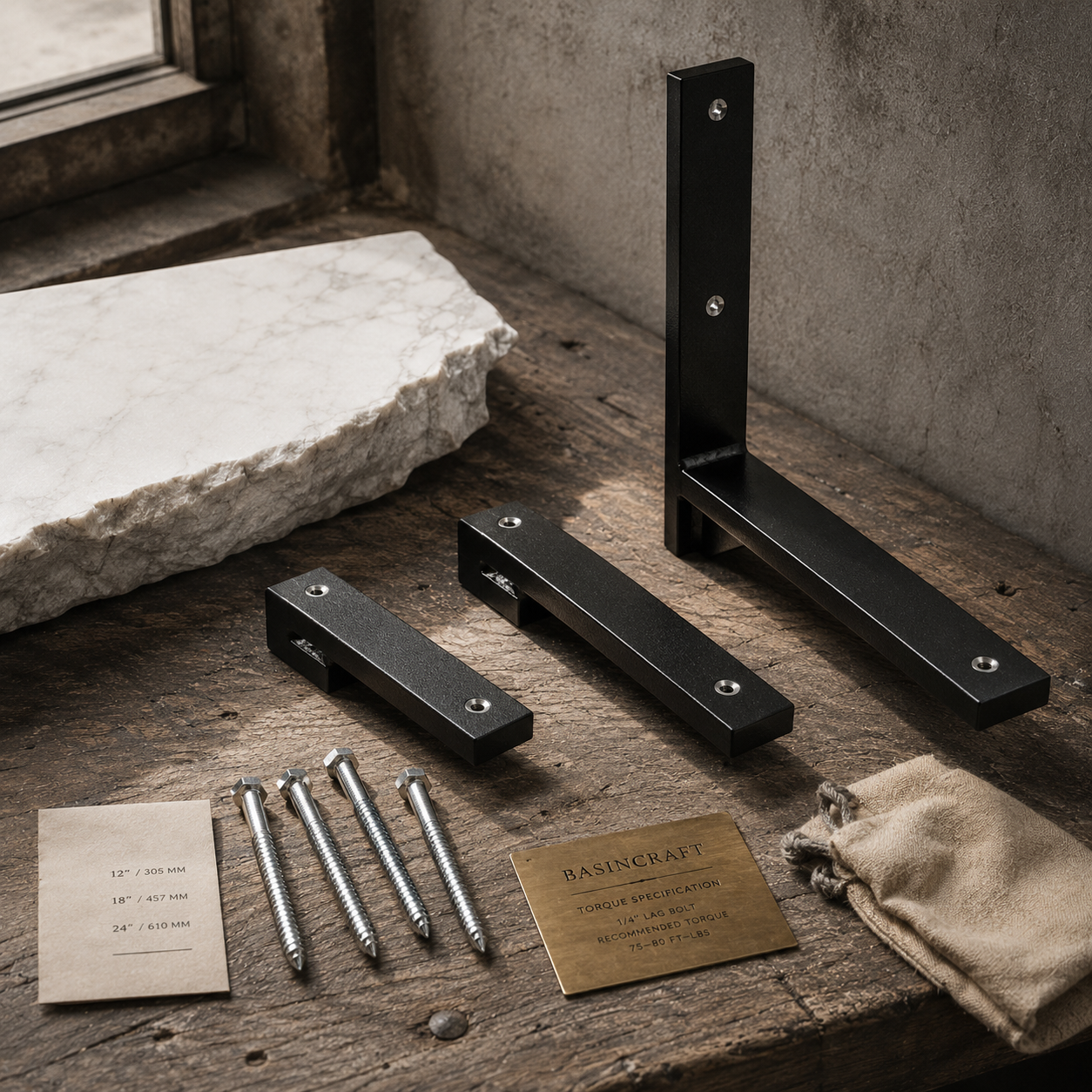

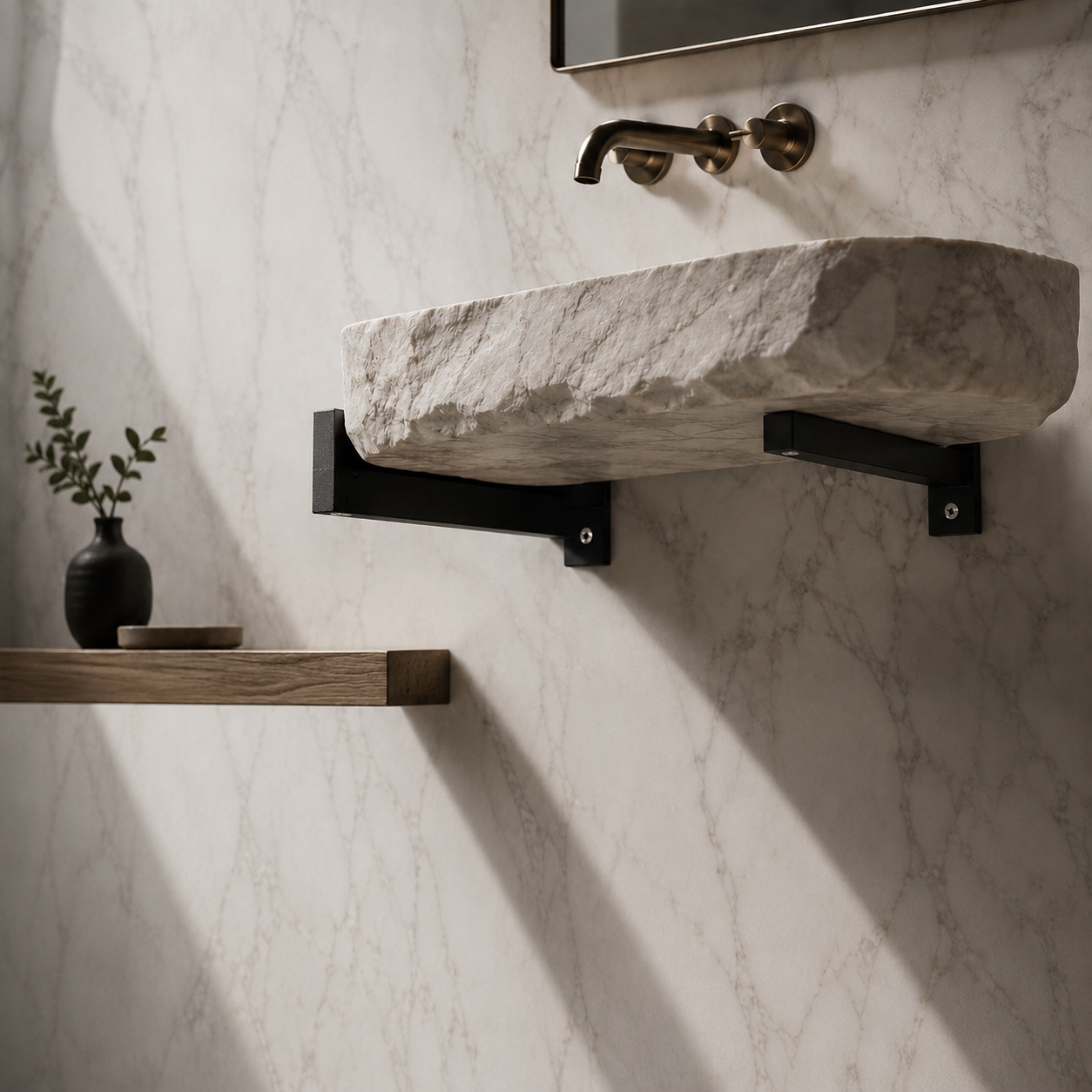

An industrial-grade concealed bracket engineered specifically to support BASINCRAFT stone sinks, marble vanities, countertops, shelves, and shower benches between 8 and 32 inches wide. Designed to disappear inside the wall — your stone sink appears to float.

The heavy-duty steel construction is rated for the substantial weight of natural stone basins (typically 30-110 lbs for vessel sinks, up to 200+ lbs for wall-mount sinks with backsplashes). Welded steel construction with a matte black powder coat. Hardware included. Suitable for indoor and outdoor installations.

Specifications

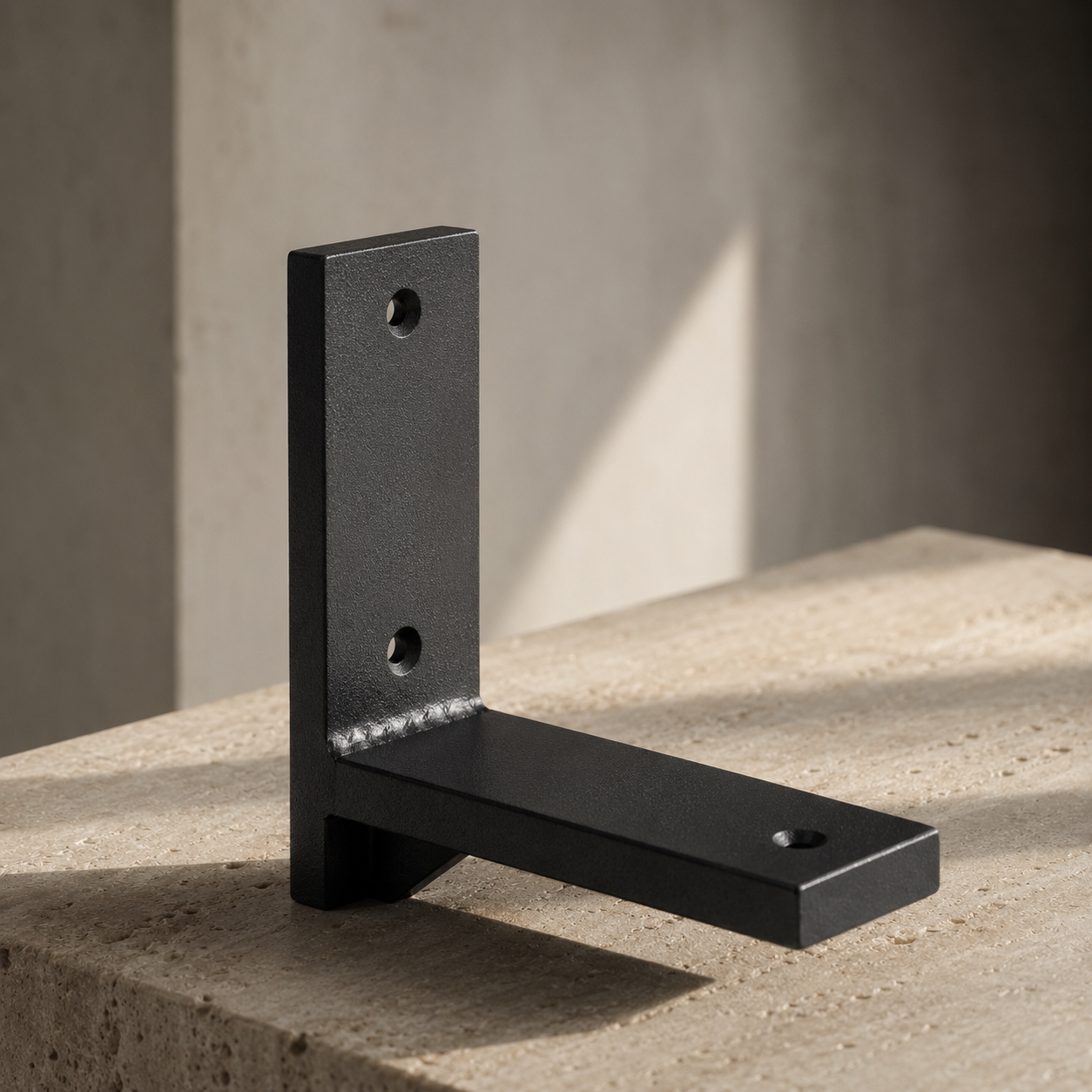

• Material: Industrial ribbed steel, welded construction
• Finish: Matte black, double-coated rust-inhibiting paint
• Designed For: Stone sinks, marble vanities, countertops, floating shelves, shower benches

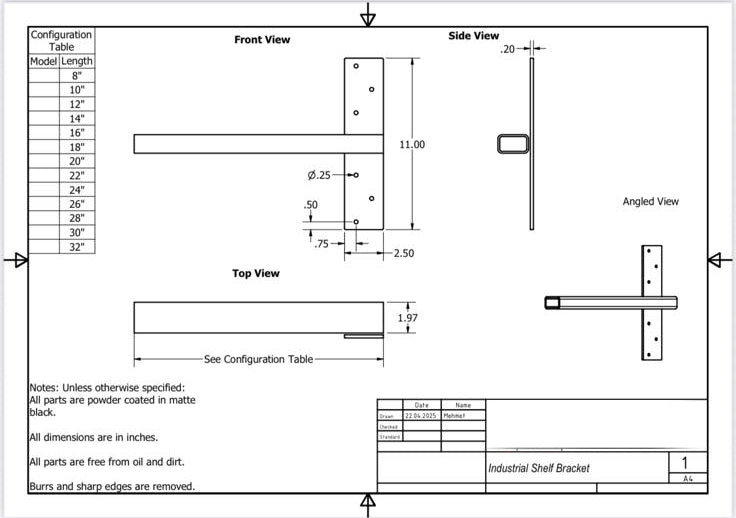

• Horizontal Arm: 8"–32" available (selected at checkout); ~3" sits inside the wall
• Arm Profile: 2.5" wide × 1" thick
• Vertical Tang: 11" length × 2.5" wide × 0.25" thick, with 6 mounting holes (3 above, 3 below)
• Load Capacity: Engineered for natural stone weights up to ~200 lbs per bracket

Installation Notes

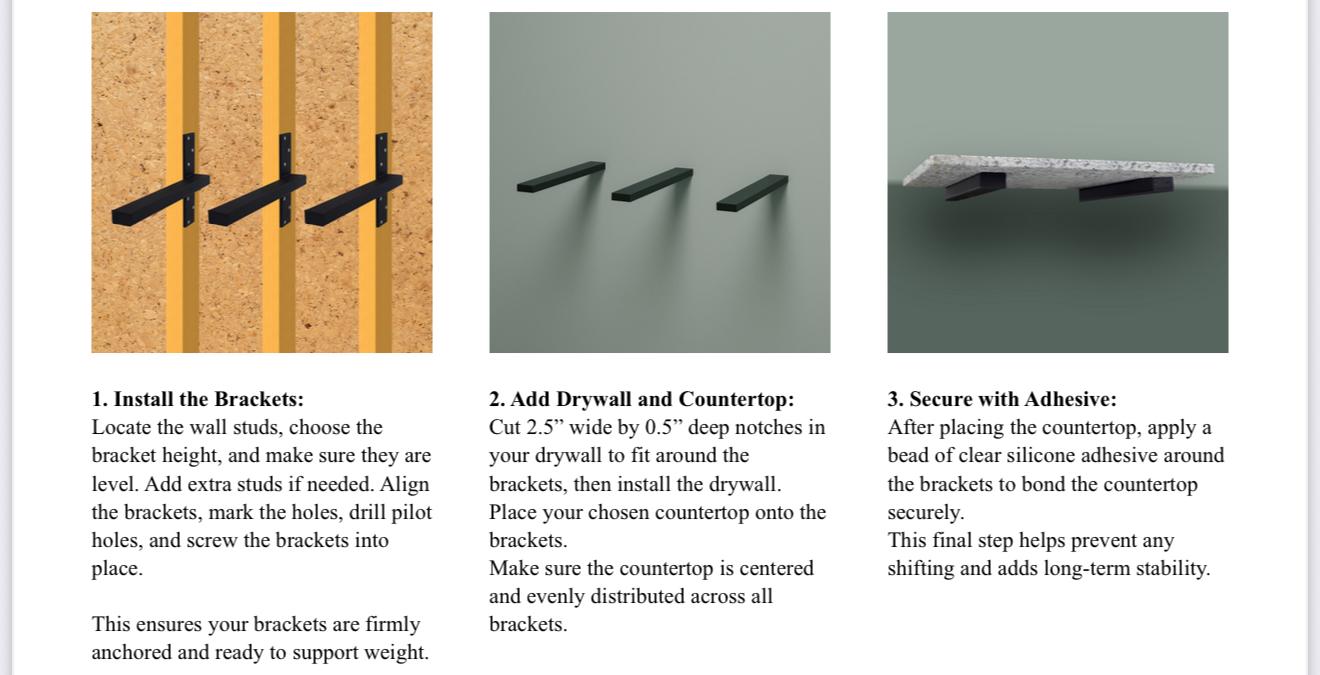

For stone sink installations, we strongly recommend two brackets minimum for any vanity or sink over 18" wide. Mount directly to 2x4 wood studs before drywall is applied. Anchor both above and below the horizontal arm to prevent twisting. For installations into metal studs or existing drywall, contact help@basincraft.com for guidance. We strongly recommend installation by a licensed contractor.

Sizing tip: Order the bracket length matching your stone sink or vanity width. Example: 24" stone vanity → 24" bracket (about 21" protrudes to support the stone).
